Semifinished products

- There are more than 200 steel grades including stainless steel and heat resistant steel.
- The unique properties are obtained by use of electroslag remelting.
- The unique properties are obtained by use of electroslag remelting.
- There are three standard sizes for continuously cast workpieces.
- Forging bloom of 450х540 is the analogue of the ingot.
- Bloom of 270х370 is the alternative to the ingot with high utilization.
![]() | Dimension, mm | 270х370, 380х380, 450х540 |
Length, mm | up to 5 500 mm | |
Technical requirements to range of dimensions | РГ 232-2005ТУ |

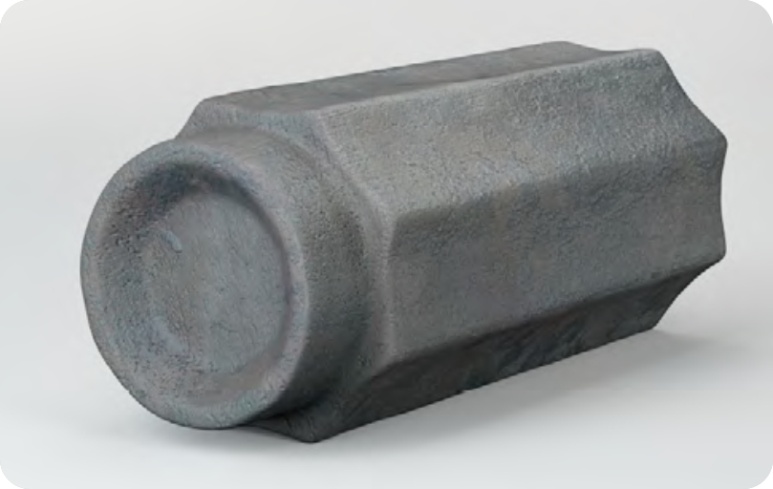

![]() | Ingot weight, t | 4,9; 6,0; 7,3; 9,3; 11,5; 16,0; 17,8 |
Height of ingot body, mm | 1 588 – 2 260 | |
Height of exterior part of ingot, mm | 245 – 500 | |
Diameter D, mm | 708 – 1 120 | |
Diameter d, mm | 564 – 950 | |
Technical requirements to range of dimensions | TU 0883-229-53504410-2004 |
Forging ingots are cast by method of bottom pouring.
![]() | Ingot weight, t | 0,8 – 9,8 |
Height of ingot body, mm | 840 – 2 920 | |
Diameter D, mm | 410 – 930 | |
Diameter d, mm | 356 – 902 | |
Technical requirements to range of dimensions | TU 3 РГ 72-2006 |
![]() | Thickness, mm | 170; 175 |
Width, mm | 630; 1 020 | |
Length, mm | up to 5 200 |
Delivery of semi-finished goods standard sizes is possible.
Steel type | Steel grades as per RF standards | Steel grades as per foreign standards |
---|---|---|
Construction carbon steel | 10-70, ОС, 22К-Ш and others | СК15, СК22, СК35, СК45, СК60, St52.3, Rst 37.2, 080М40, 070М20, А350LF, С10G and others |
Construction low-alloyed steel | 09Г2С, 10ХСНД, 15ГС, 65Г, Э76 and others | 42CrMoV4, 21CrMo10, 21CrMo10V4, 20MnCrS5, 16MnCrS5, 18СDV4 and others |
Construction alloyed steel | 40Х, 20Г, 30ХГСА, 30ХМА, 38ХМ, 40ХМФА, 40ХГМА, 38ХГН, 12Х1МФ, 15Х1М1Ф, 24ХМ1Ф, 25Х1МФ, 25Х2М1Ф, 40ХН, 40ХН2МА, 38Х2Н2МА, 38ХН3МА, 38ХН3МФА, 34ХН1М, 34ХН3МА, 38ХС, 12ХН3А, 12Х2Н4А, 15Х2НМФ-Ш, ШХ15, АБ2-ПК, 14Х2ГМР and others | |
Tool steel | 9Х1, 5ХНВС, 6ХВ2С, 4Х5МФ1С-Ш, 5ХНМ, У8A and others | |
Stainless steel | 08-12Х18Н10Т, 20Х13, 40Х13, 14Х17Н2 and others | |
Heat resistant and heat-proof steel | ЭП 609-Ш, ЭИ 961-Ш, ЭП 517-Ш and others |

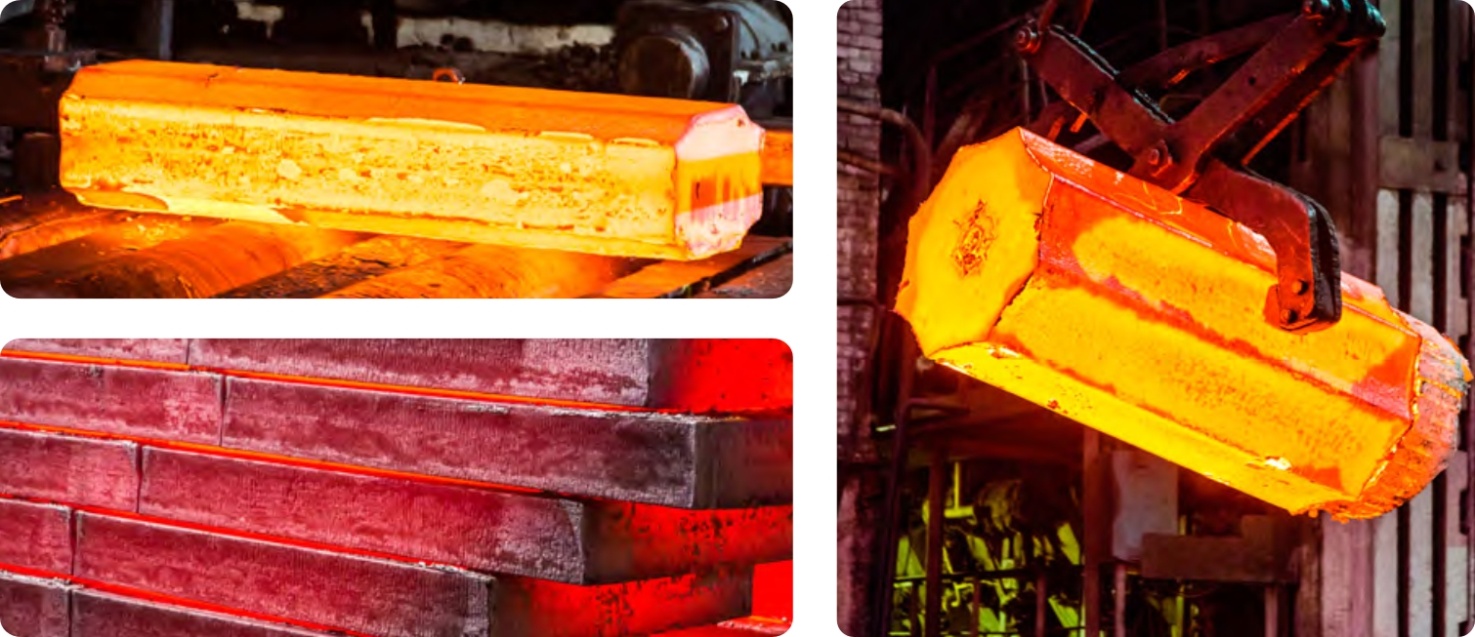

Ingots and blooms are designed for further rolling on section rolling mills or processing on press-forging equipment.
Slabs are designed for rolling into light-gauge and thick-gauge sheets.
