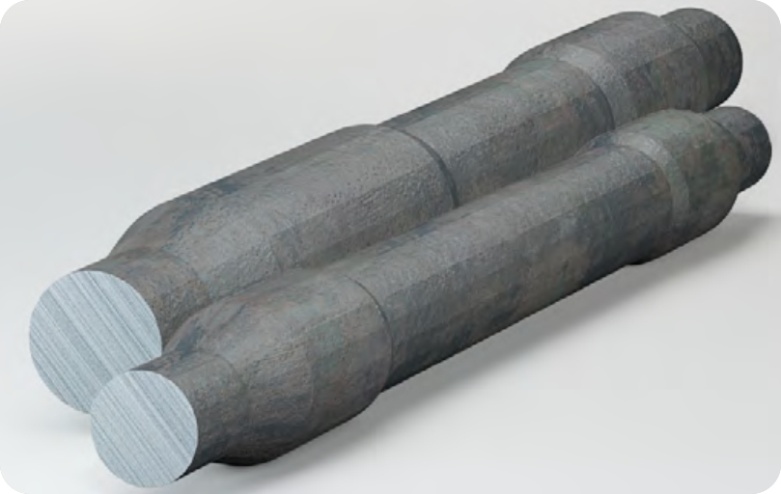

Railway Axles


  • Axles are made of own raw stock.
  • Production by method of forging on radial forging machine.
  • There is a wide assortment of axles: car, locomotive, tram axles, axles for underground railway carriages, axles for innovational cars.
  • The unique properties are obtained by use of  electroslag remelting.
Nomenclature of Rough Car Axles
Drawing  Axle type as per GOST 22780-93 Characteristics  Main dimensions, mm Weight of rough axle, kg
D of axle neck  D of axle body  D of axle seat Length
РКВ-1-01 РУ1Ш Axle with tapered body
(maximum load: 23,5 t)
150 185 210 2 224 527
РКВ-1-02 - Axle with cylindrical body
(maximum load: 25 t)
165 210 225 2 255 611
РКВ-1-03 РУ1Ш Axle with cylindrical body for high-speed railway cars 152 194 213 2 290 568
РКВ-1-04 РУ1Ш Centered axle with cylindrical body (maximum load: 23,5 t) 145 187 210 2 220 496
РКВ-1-07 РУ1Ш Axle with cylindrical body
(maximum load: 23,5 t)
145 187 210 2 220 496
РКВ-1-09 РМ5 Axle with cylindrical body for electric motor coaches 155 200 221 2 480 628
РКВ-1-10 РУ1Ш Centered axle with tapered body,
(maximum load: 23,5 t)
150 185 210 2 220 526
РКВ-1-12 РУ1 Axle with tapered body for passenger carriages (maximum load: 23,5 t) 148 187 210 2 370 548
РКВ-1-17 - Non-motored axle with inner hole for high-speed electric trains 170 230 - 2 340 670
РКВ-1-18 - Motored axle with inner hole for high-speed electric trains 170 205 240 2 340 649
Nomenclature of Rough Locomotive Axles
Drawing  Designation of finished axle  Main dimensions, mm Weight of rough axle, kg
D of axle neck  D of axle body  D of axle seat Length
РКЛ-2-2 8ТС.205.412 160 218 251 2430 665
    РКЛ-2-3 Э12 (8ТН.205.792) 210 235 275 2550 985
РКЛ-2-4 8ТН.205.813 195 220 250 2550 840
РКЛ-2-5 8ТС.205.203 195 215 245 2550 840
РКЛ-2-6 8ТС.205.382 195 252 275 2550 1040
РКЛ-2-7 2ЭС5 165 212 250 2416 805
РКЛ-2-8 8ТС.205.227 178 218 250 2610 845
РКЛ-3-1 2ЭС6.31.110.001 195 235 255 2475 890
РКЛ-3-2 017.35.10.001 177 232 255 2550 865
РКЛ-3-3 2ЭС10.31.111.001 195 256 270 2475 1065
РКЛ-4-1 ЭП2К.31.15.101 175 220 255 2600 810
РКЛ-4-2 ТЭП75.31.15.101 175 225 255 2680 845
ТЭ70.31.15.101 - -
РКЛ-5-1 11-587-120 195 240 275 2492 985

Rough railway axles are made of steel grade OC in accordance with GOST 31334-2007 by method of forging on a radial forging machine  what ensures  improved quality of the finished product. There are certificates of conformity and permit for use of the certification system conformity mark for the produced axles.

There is a possibility of shipment of ready goods in small batches.  Over the last 9 years “Motovilikha” has mastered 13 types of car axles and 14 types of locomotive axles. In the beginning of  2014 the company received certificates for  production of axles for high-speed trains.
